Microsensia Bioelectronics

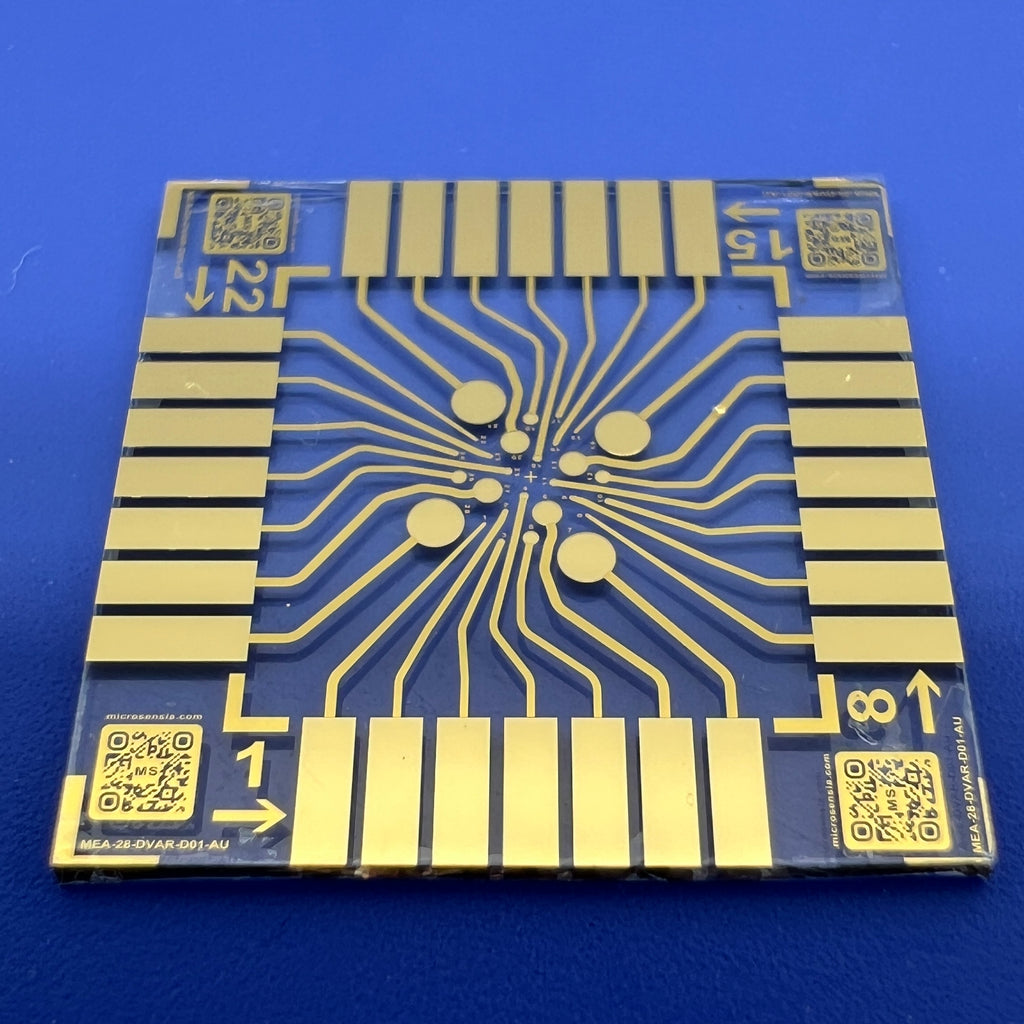

Patternable MEA - Variable Diameter
SKU:
MS2001AU
Box of 5 devices
Product description
Ready to be coated microelectrode array (MEA). Ideal for research and development applications requiring precise organic electronics fabrication. Pre-configured geometry enables rapid prototyping and testing of MEA-based biosensors, amplifiers, and bioelectronic interfaces.
- Device size = 17 x 17 x 0.7 mm
- Substrate = Glass
- Contact pad pitch = 1.27 mm
- Trace = 100 nm Gold / 10 nm Titanium
- Insulation/Passivation layer = 1.5 um Parylene C
|

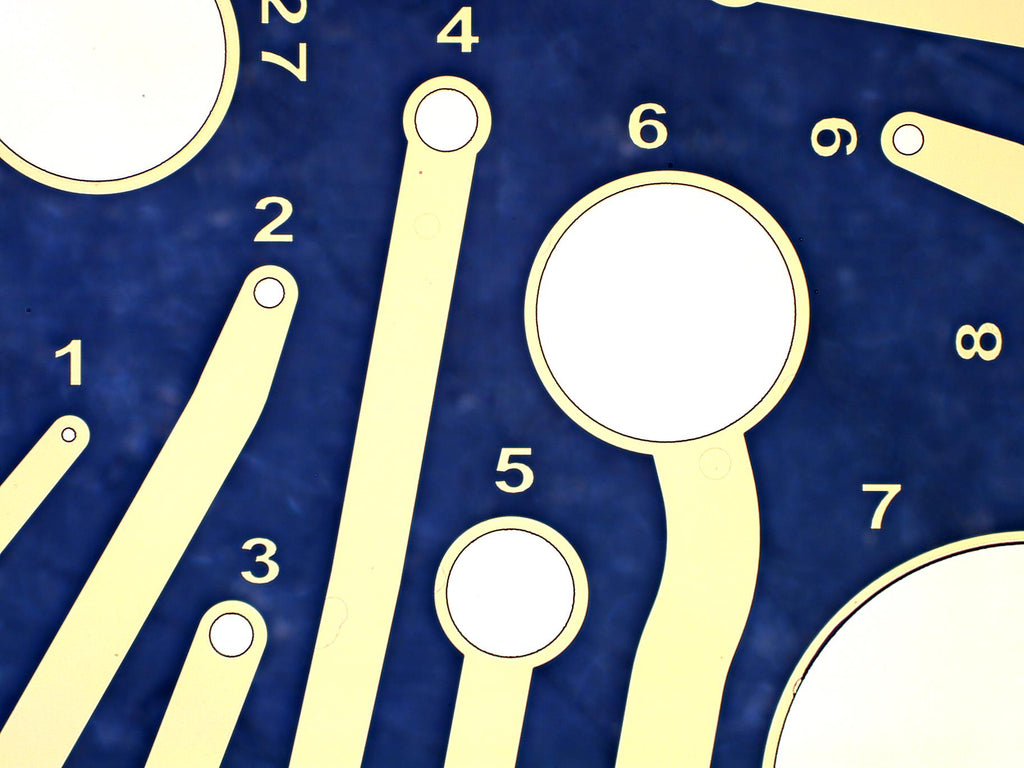

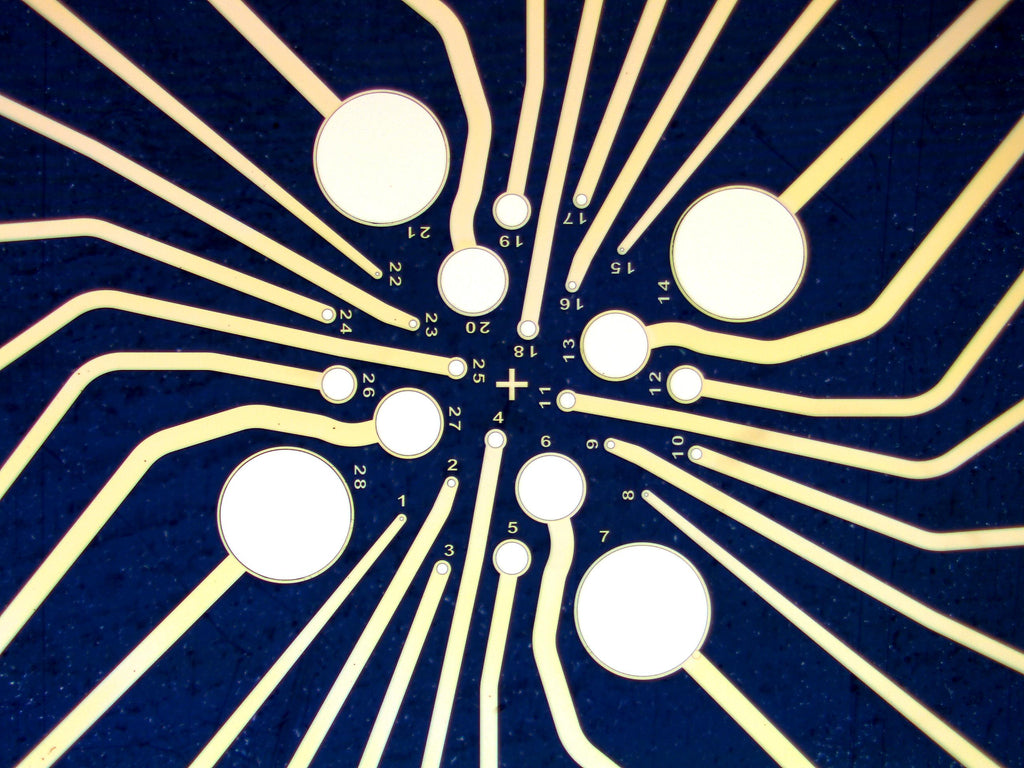

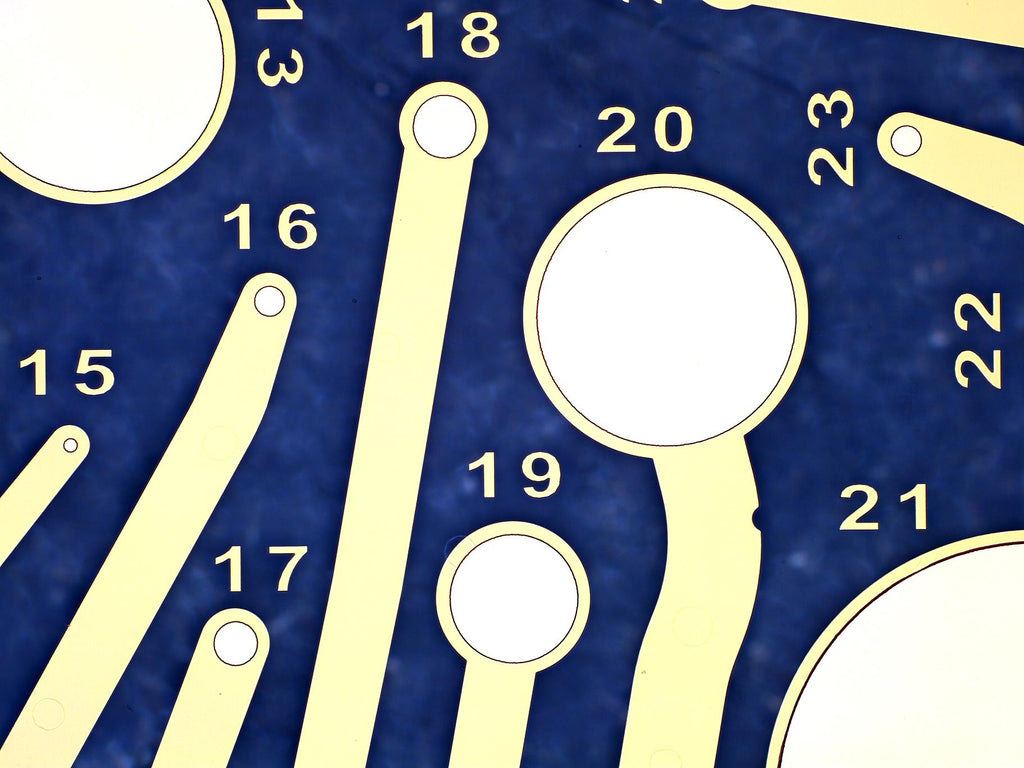

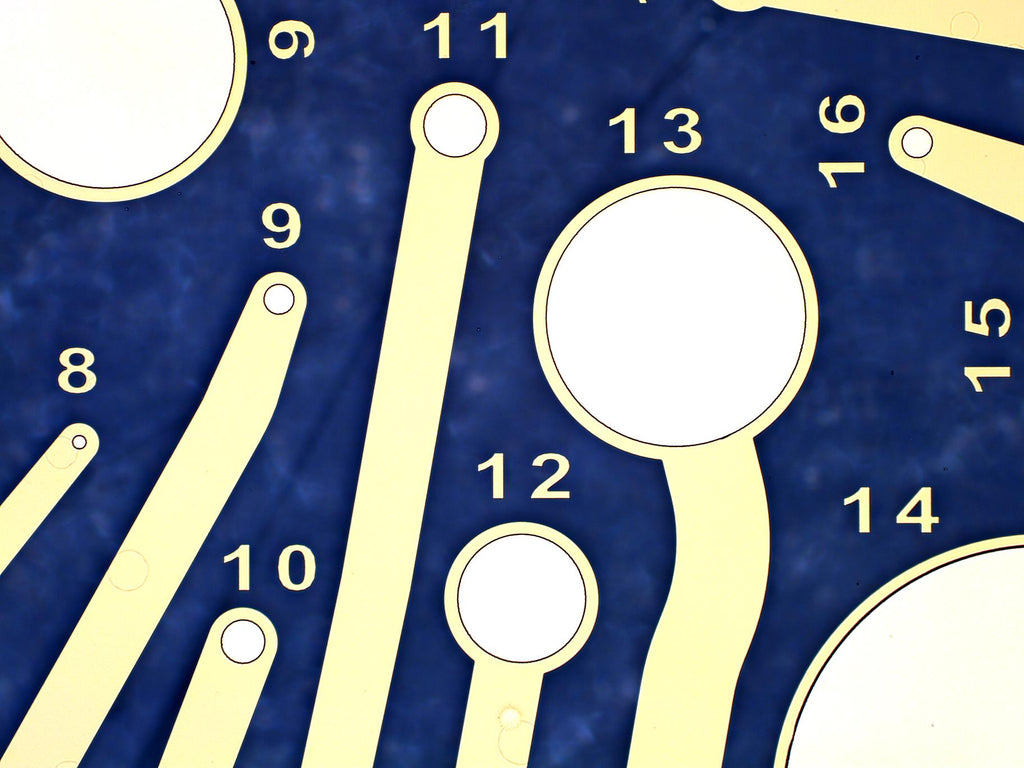

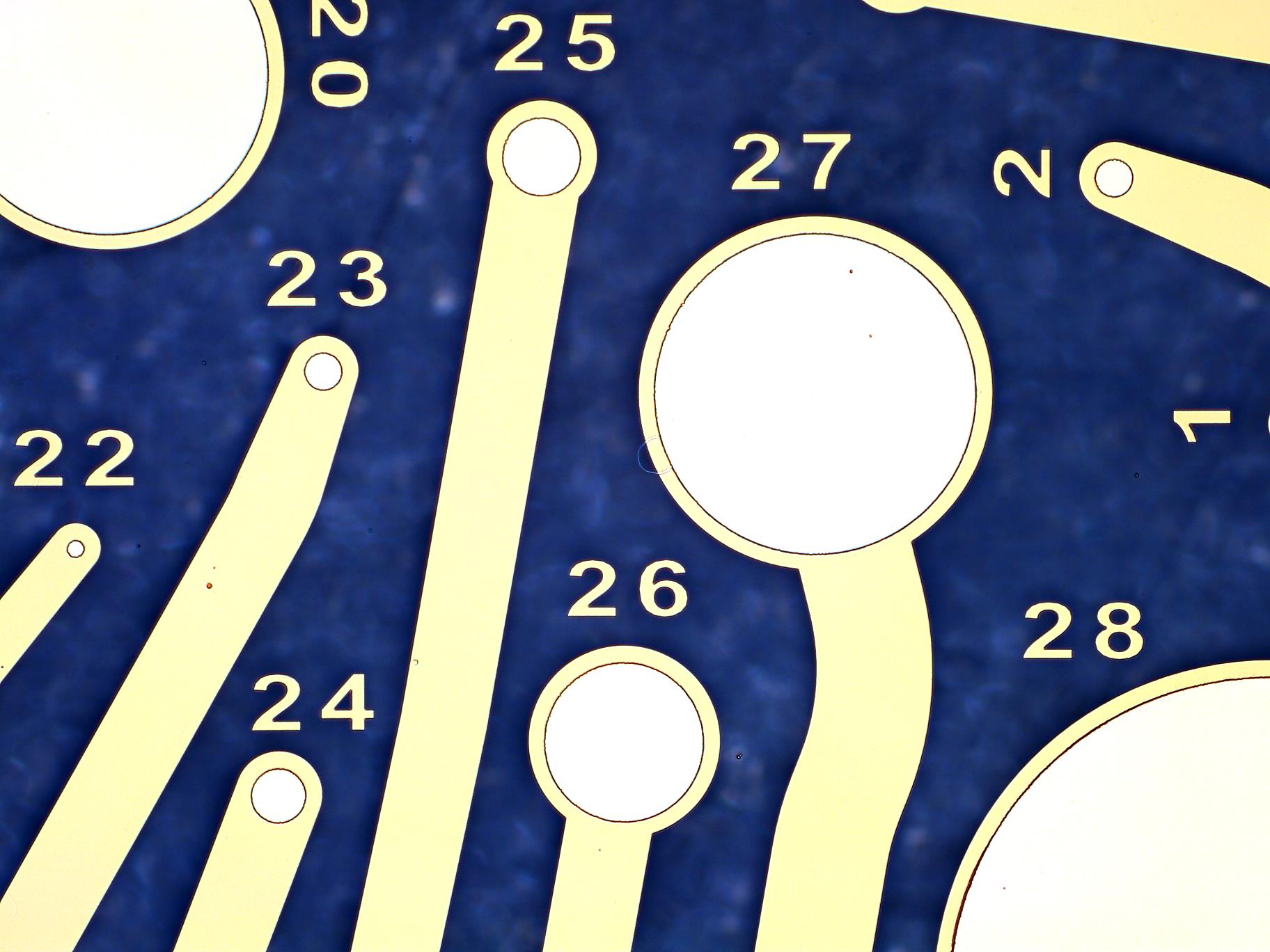

Electrode # |
Diameter [mm] |
Area [mm2] |
|
1, 8, 15, 22 |
0.03526 |
0.00098 |
|
2, 9, 16, 23 |
0.07052 |
0.00391 |
|
3, 10, 17, 24 |
0.09974 |
0.00781 |
|
4, 11, 18, 25 |
0.01563 |
0.14105 |
|
5, 12, 19, 26 |
0.28209 |
0.06250 |
|
6, 13, 20, 27 |
0.56419 |
0.25 |
|
7, 14, 21, 28 |
1.12838 |
1 |
