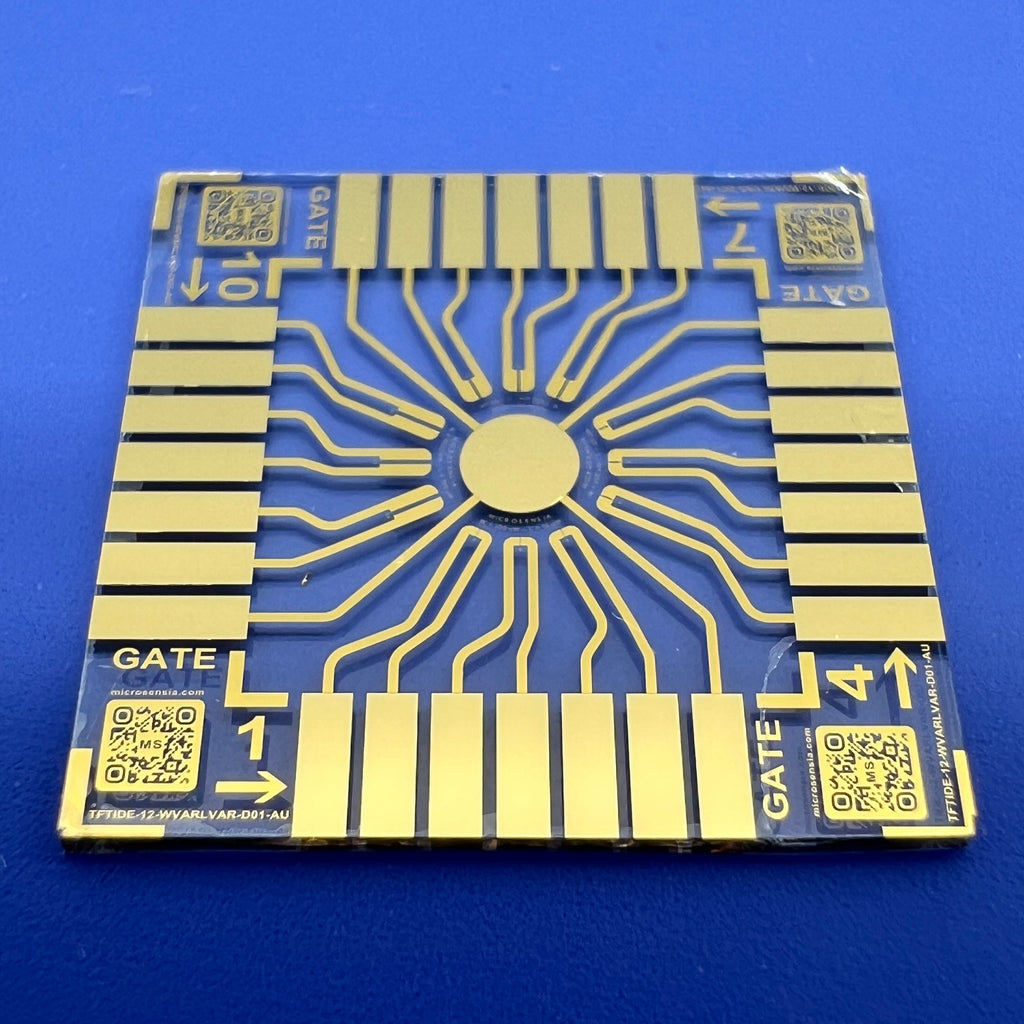

Ready to be coated device to make an organic electrochemical transistor (OECT). Ideal for research and development applications requiring precise organic electronics fabrication. Pre-configured geometry enables rapid prototyping and testing of OECT-based biosensors, amplifiers, and bioelectronic interfaces.

• Device size = 17 x 17 x 0.7 mm
• Substrate = Glass
• Contact pad pitch = 1.27 mm
• Trace = 100 nm Gold / 10 nm TitaniumI
• Insulation/Passivation layer = 1.5 um Parylene C
• Gate surface = 5 mm2

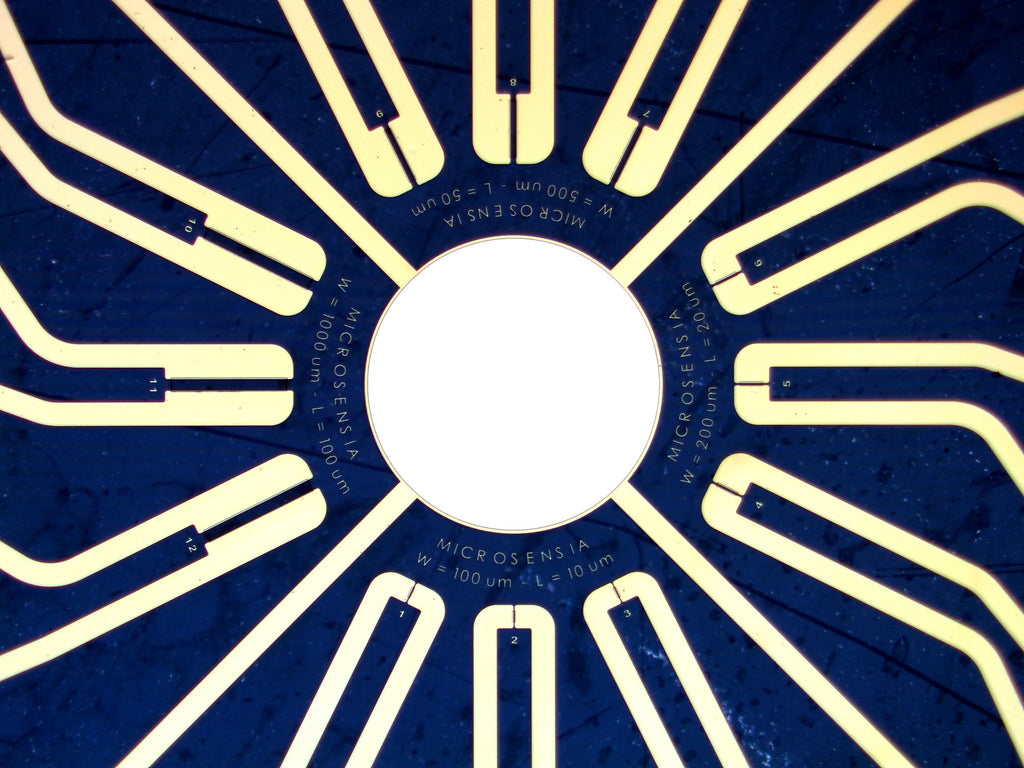

• OECT channel = 12

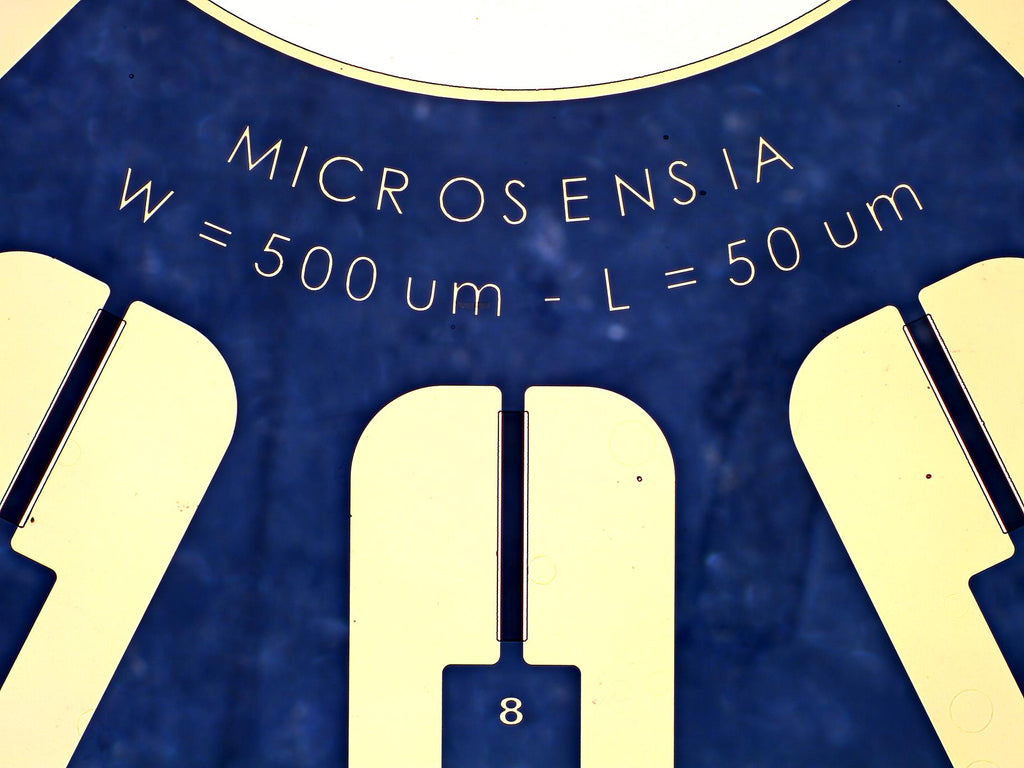

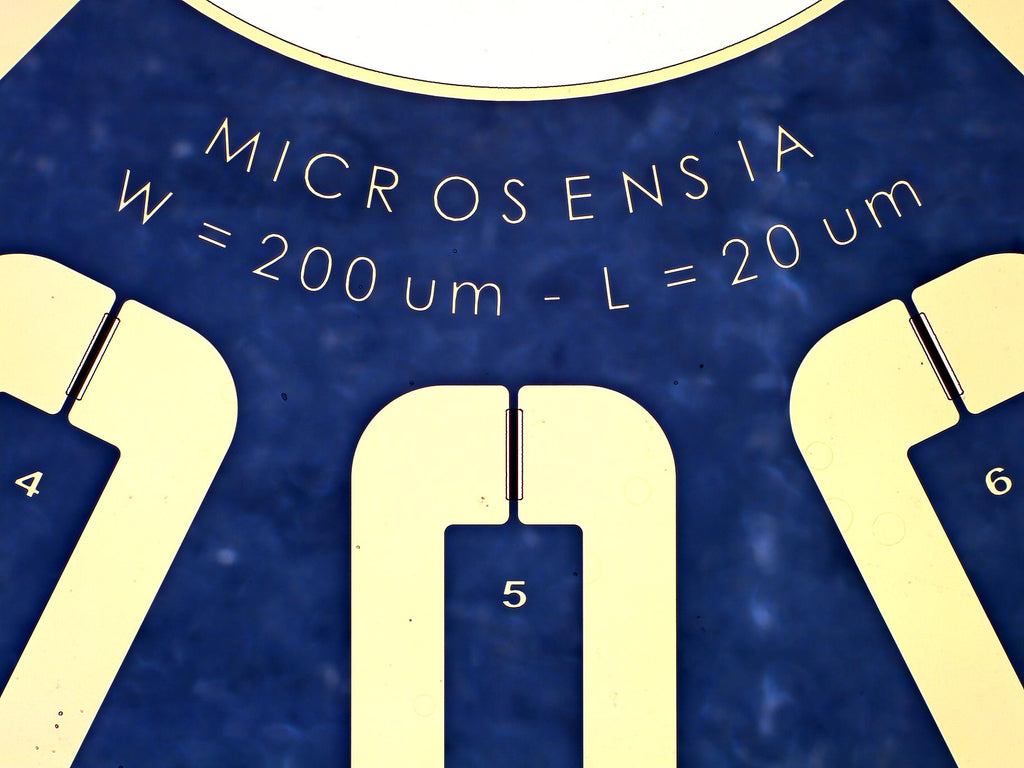

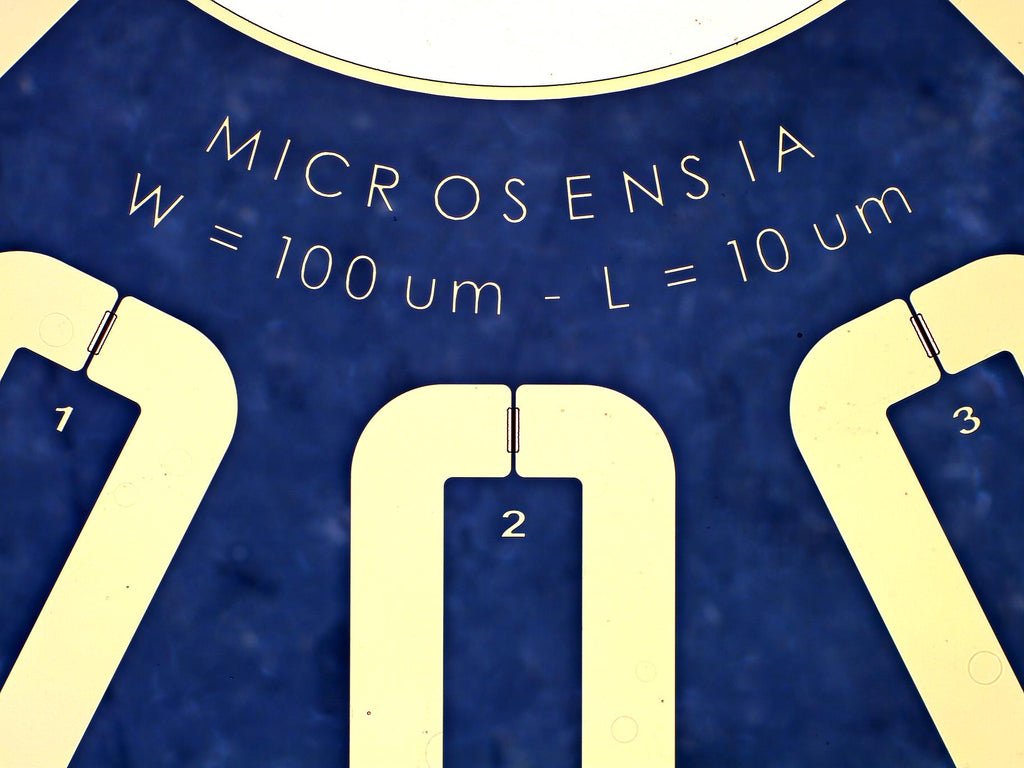

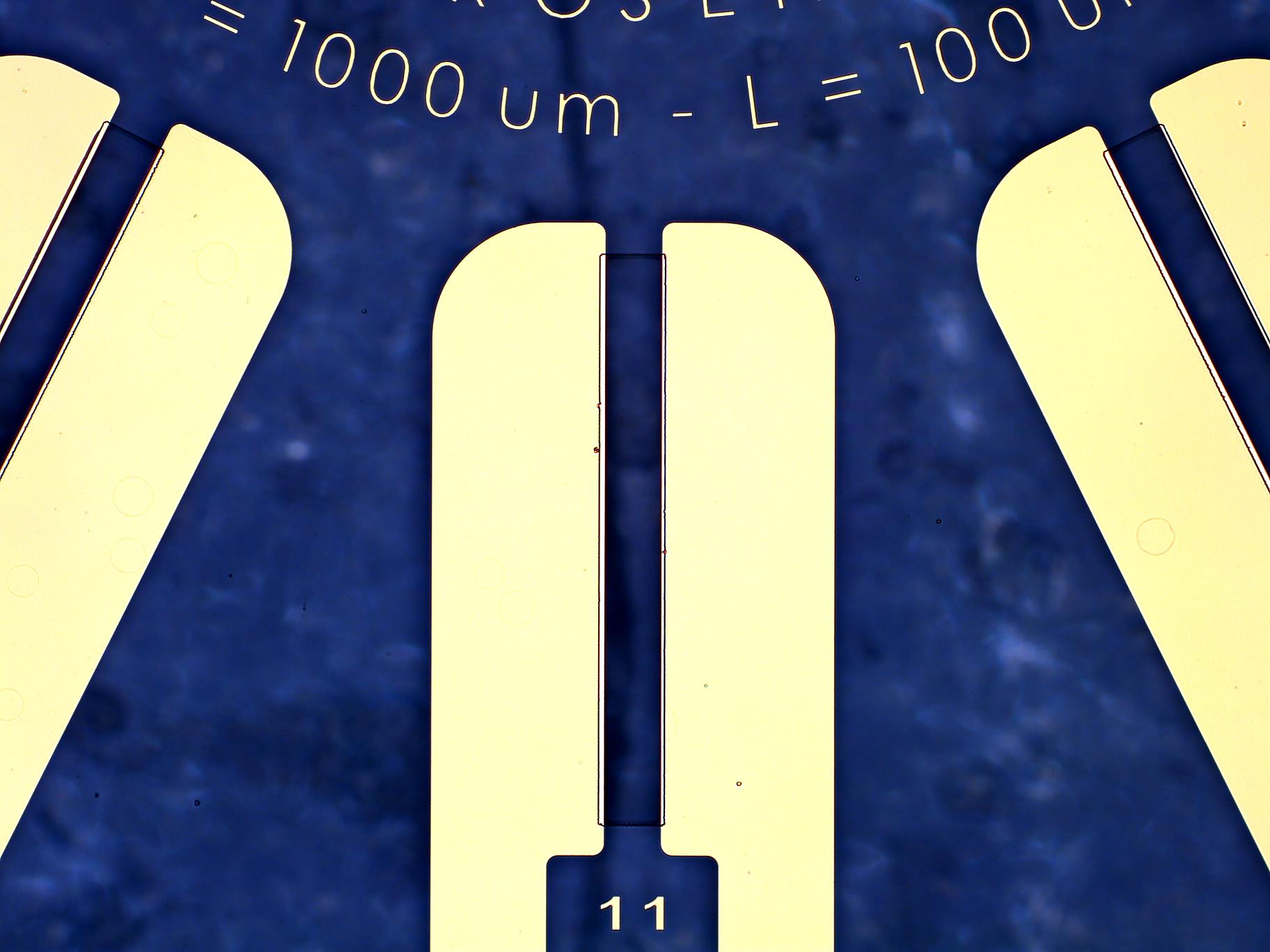

• Channel width (W)

• Channel length (L)
